Air Conditioner Switch 45A 7×7 10 mm White – NEWPOWER FLEX
NewPower Lighting Highlights:
- High Quality
- Long Lifespan
- Elegant Design
- Energy Efficient
| Item No: 206084 | Download Datasheet |
| DESCRIPTION | DETAILS |
|---|---|
| Product Description | NEWPOWER SIZE 7X7 45A DOUBLE POLE SWITCH WITH LED |
| Item Code | 206084 |
| Standard | IEC60669-1:2017 |
| Rated Current | 45A max |
| Rated Voltage | 250V AC |
| Frequency | 50 / 60 Hz |
| Product Dimensions | 86 x 86 x 31 mm |
| Accessories | Mounting screws – 2 x M3.5 |
| Mounting | Flush Mounting |
| Fixing Center | 80 mm |
| Auxiliary fixing options | 4 Corners |
| Mounting box size | 35 mm |
| Actuating member | Rocker |
| Endurance | 10,000 |
| Enclosure Material | PC |
| Contact material | Copper |
| Terminal for current carrying part | Red copper 99.9% |
| Screw terminal | Steel |

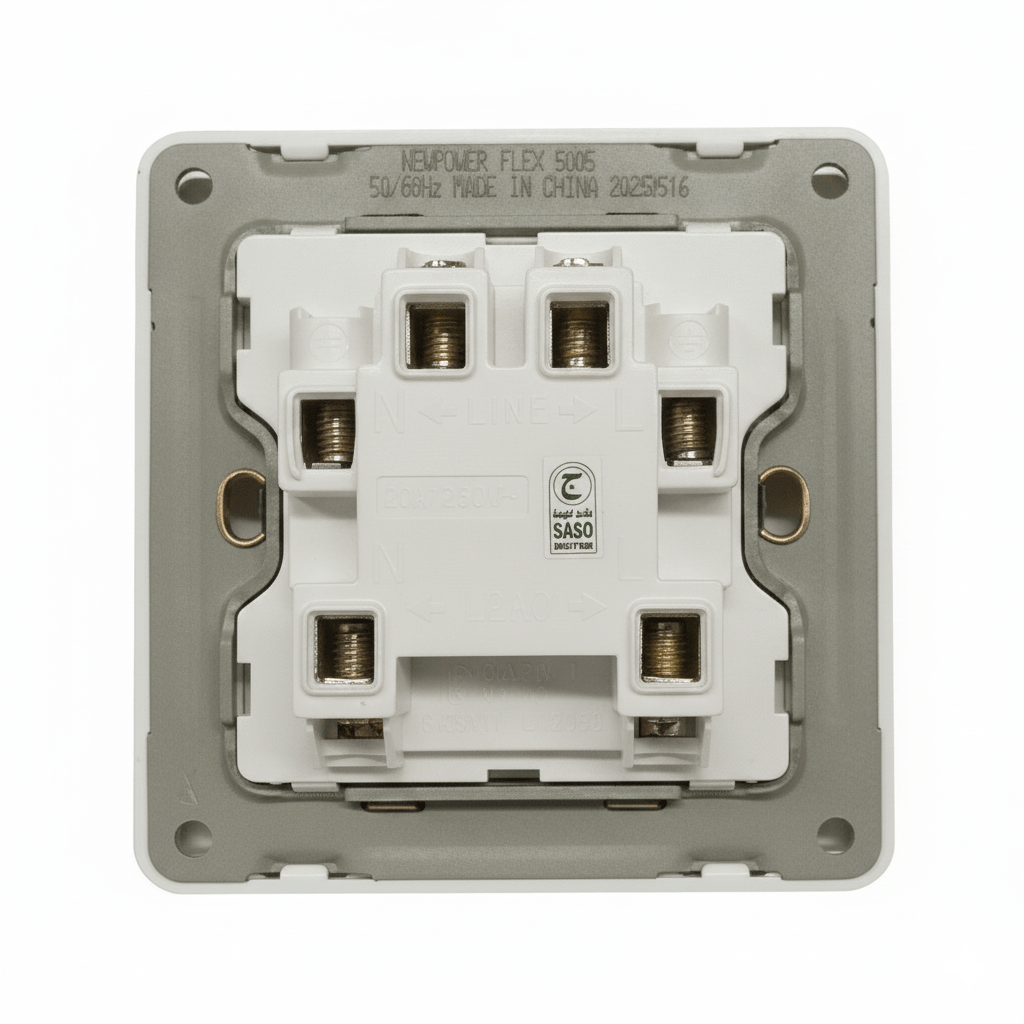

| Terminal Identifier | LINE L ,LOAD L and LINE N, LOAD N |
| Conductor size | 16 mm² |
| Terminal Capacity | 2 x 6 mm² 1 x 10 mm² 1 x 16 mm² |
| Tightening torque | 2.0 Nm |
| Screw size | M5 |
