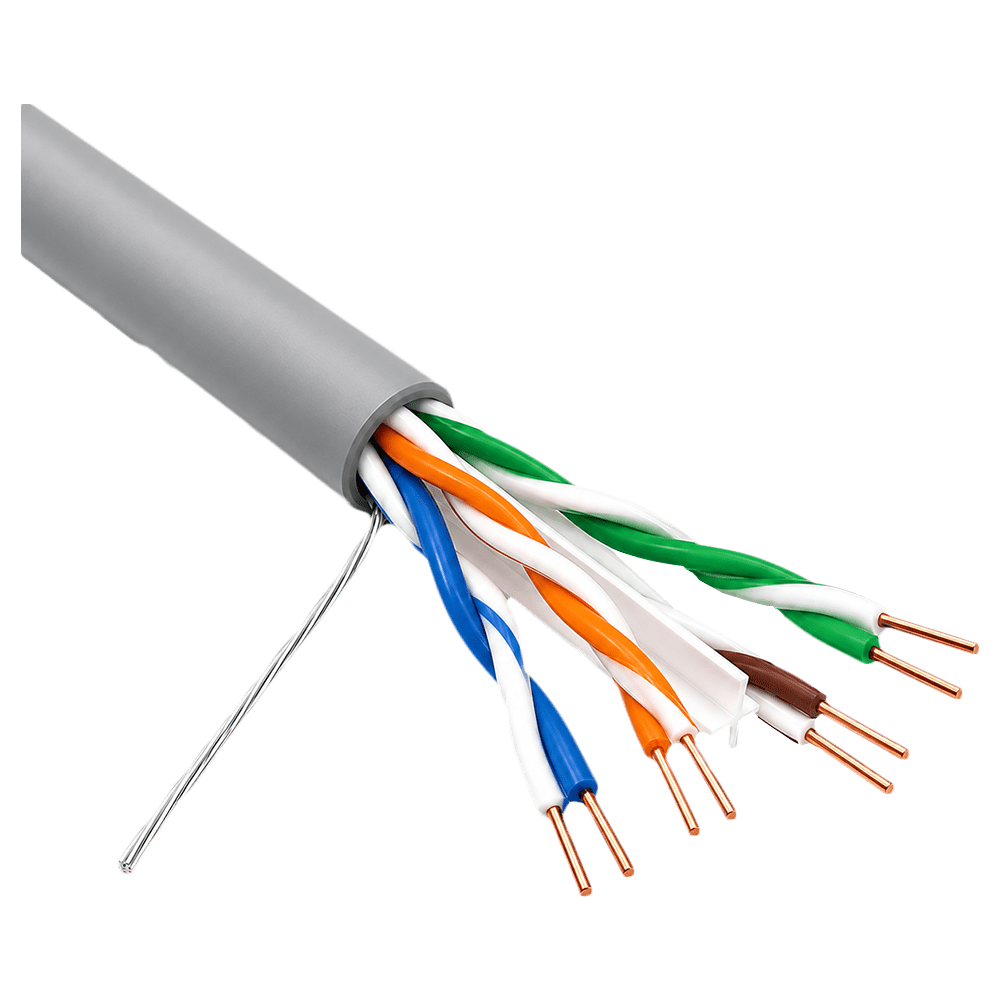

Data Cable Grey CAT6 – NEWPOWER
NewPower Lighting Highlights:
- High Quality
- Long Lifespan
- Elegant Design
- Energy Efficient
| Item No:203008 | Download Datasheet |
| Caption | Value |
|---|---|
| Type | U/UTP |
| Number of pairs | 4 pairs |
| Rated voltage | 24 V |
| Resistance | 7.6/100m |
| Wire gauge | 23 AWG |
| Material | PVC |
| Length | 305 m |
| Ta | -20 ~+55 °C |
| Stranding | Solid |
| Conductor Count: | 8 |
| Insulation | Polyethylene |
| Conductor DCR | > 4% |
| Impedance | 91.21 ~ 111.36 |
| Delay skew | 20 ns/100m |
| Coupling Attenuation Class: | Type III |
| Segregation class | a |
| Data Category: | Category 6 |
| ISO/IEC Compliance: | ISO/IEC 11801 |
| CENELEC Compliance: | EN 50173-1 |
| CPR Euroclass: | Eca |
| ANSI Compliance: | ANSI/TIA/EIA 568-C.2 |
| ISO/IEC Flammability: | IEC 60332-1 |
| Color pair 1 | White/Blue & Blue |
| Color pair 2 | White/Orange & Orange |
| Color pair 3 | White/Green & Green |
| Color pair 4 | White/Brown & Brown |
| Main Color | Gray |
