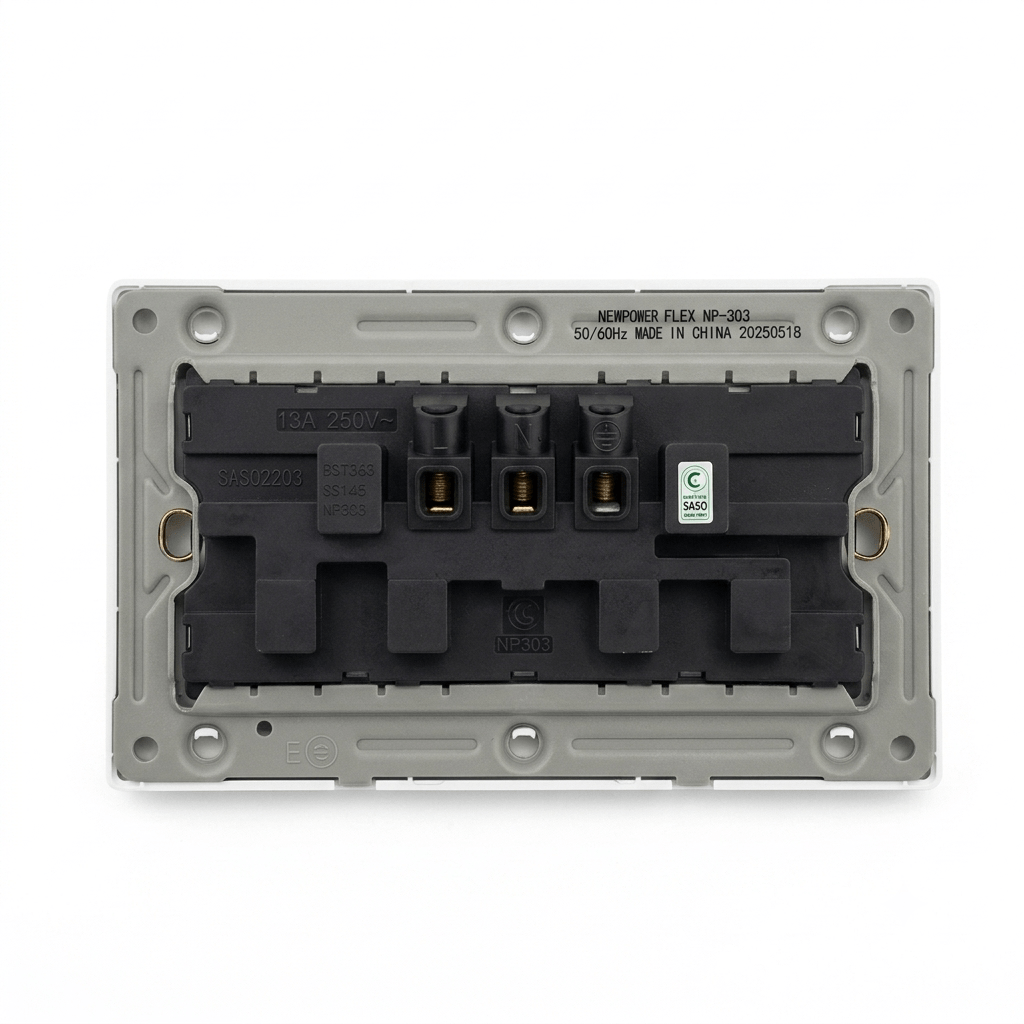

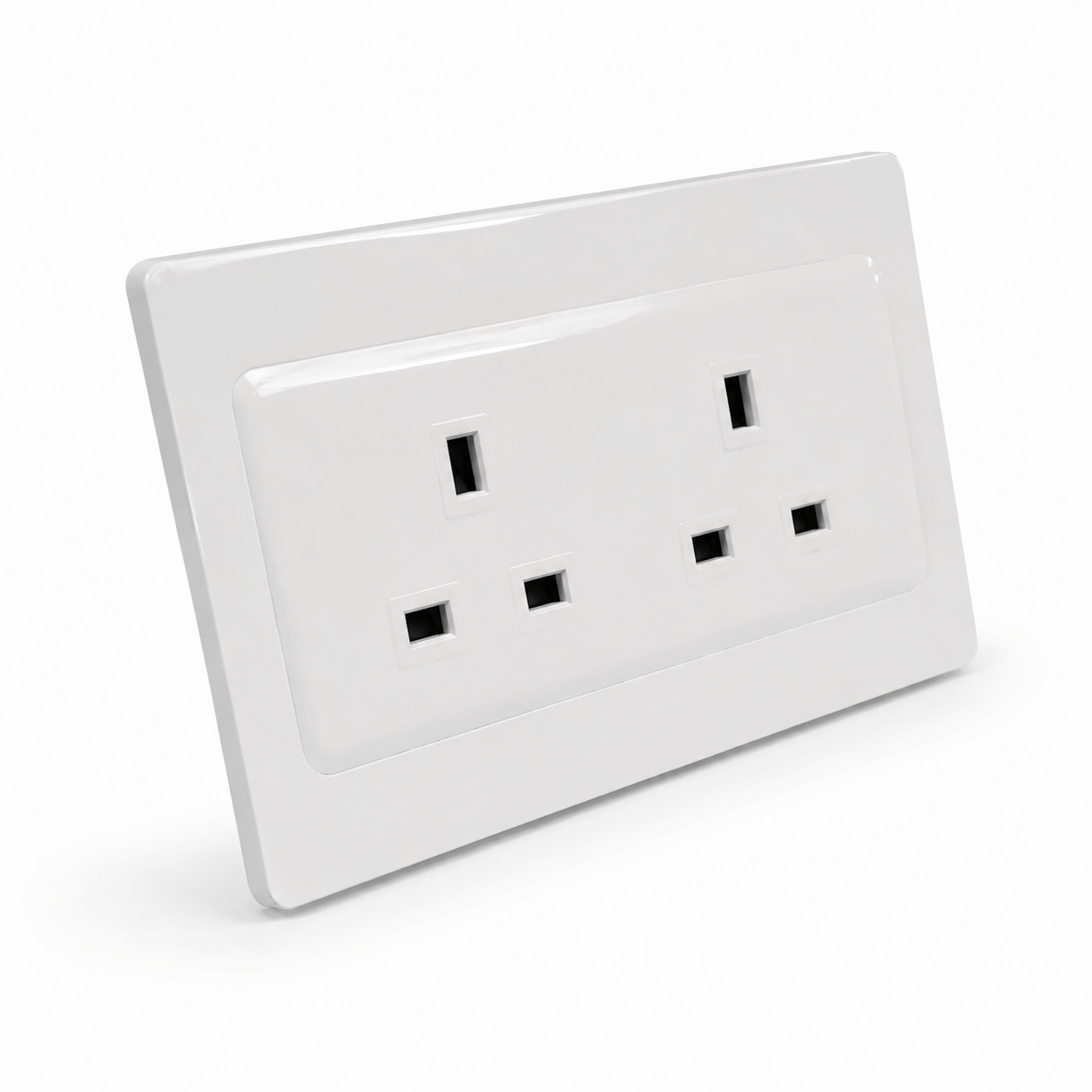

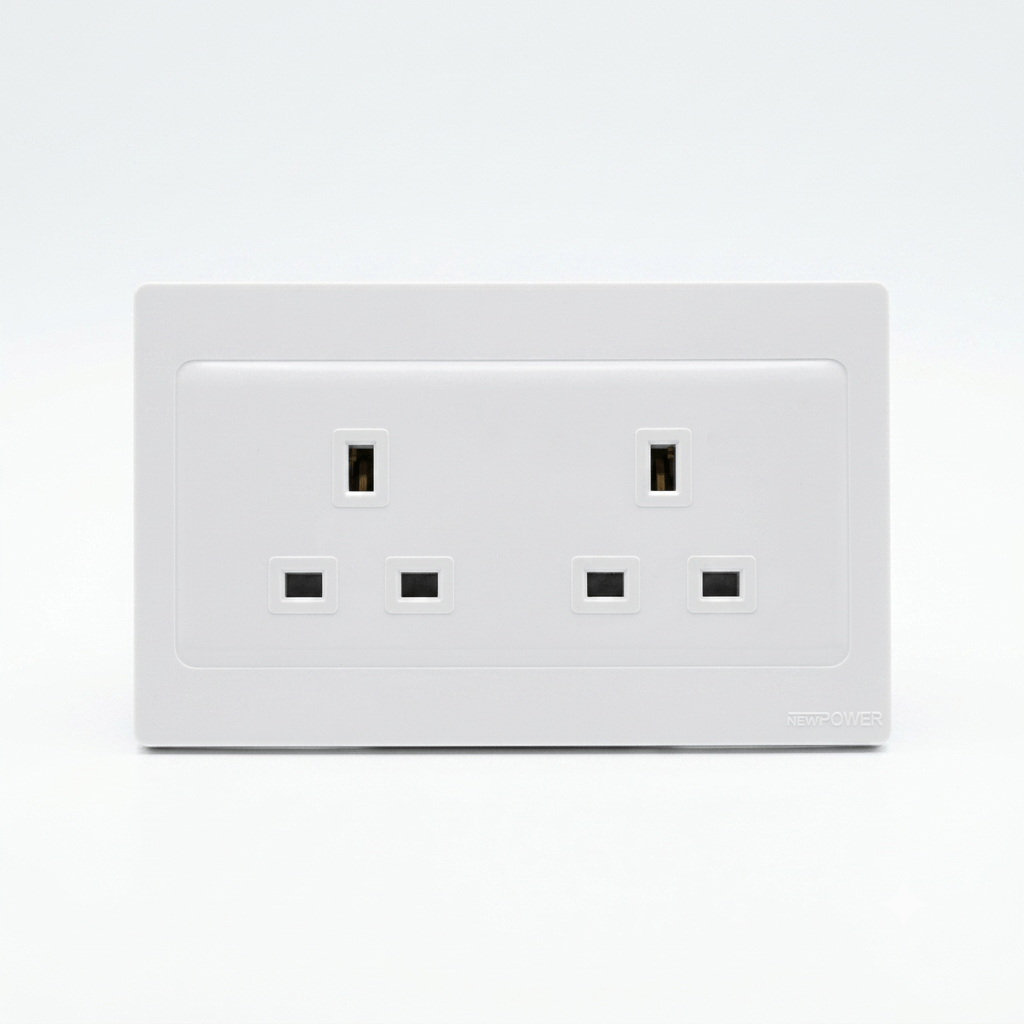

Double Socket Without Switch 13A 14×7 White – NEWPOWER FLEX
NewPower Lighting Highlights:
- High Quality
- Long Lifespan
- Elegant Design
- Energy Efficient
| Item No: 206077 | Download Datasheet |
| DESCRIPTION | DETAILS |
|---|---|
| Product Description | NEWPOWER SIZE 7X14 Double 13A SOCKET |
| Item Code | 206077 |
| Standard | SASO 2203:2018 BS 1363-2 |
| Rated Current | 13A |
| Rated Voltage | 250V AC |
| Frequency | 50 / 60 Hz |
| Product Dimensions | 146 x 88 x 31 mm |
| Accessories | Mounting screws – 2 x M3.5 |
| Mounting | Flush Mounting |
| Fixing Center | 80 mm |
| Auxiliary fixing options | 4 Corners |
| Mounting box size | 35 mm |
| Actuating member | Rocker |
| Endurance | 15,000 |
| Enclosure Material | PA66 With GF 25%( Housing ) , PA66 unfilled (Housing COVER) and PC ( Clip on Plate ) |
| Contact material | Copper |
| Terminal for current carrying part | Brass 62% |
| Screw terminal | Steel |
| Terminal Identifier | L, N & E |
| Conductor size | 2.5 mm² |
| Terminal Capacity | 4 x 2.5 mm² 3 x 4 mm² |
| Tightening torque | 2.0 Nm |
| Screw size | M5 |
