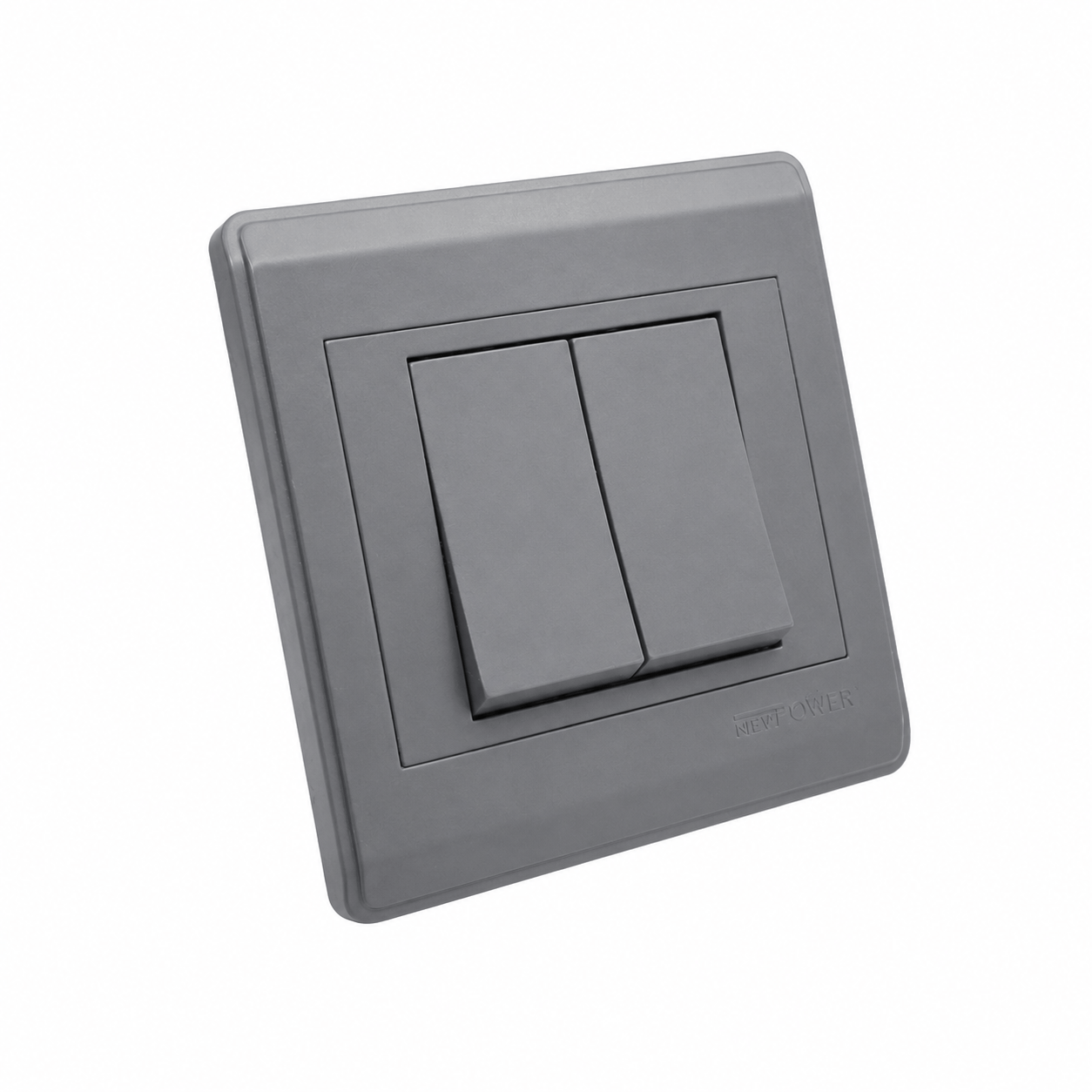

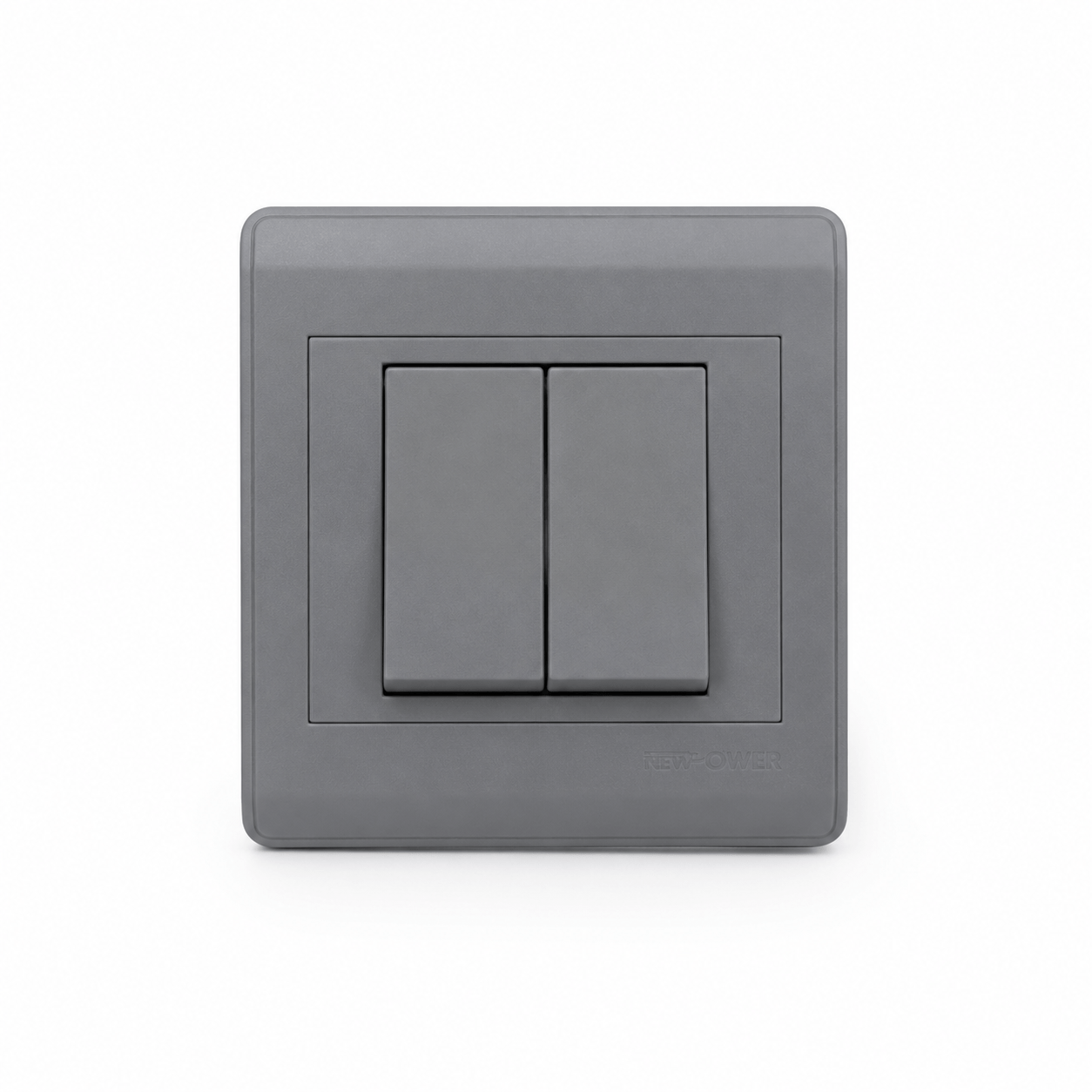

Double Switch 4 Line 7×7 Dark Grey – NEWPOWER
NewPower Lighting Highlights:
- High Quality
- Long Lifespan
- Elegant Design
- Energy Efficient
| Item No: 201214 | Download Datasheet |
| DESCRIPTION | DETAILS |
|---|---|
| Product Description | NEWPOWER SIZE 7X7 2GANG 2WAY 16A WIDE SWITCH |
| Available colors | 201214 |
| Standard | IEC60669-1:2017 |
| Rated Current | 16A max |
| Rated Voltage | 250V AC |
| Frequency | 50 / 60 Hz |
| Product Dimensions | 86 x 86 x 31 mm |
| Accessories | Mounting screws – 2 x M3.5 |
| Mounting | Flush Mounting |
| Fixing Center | 80 mm |
| Auxiliary fixing options | 4 Corners |
| Mounting box size | 35 mm |
| Actuating member | Rocker |
| Endurance | 40,000 |
| Enclosure Material | PC |
| Contact material | Copper |
| Terminal for current carrying part | Phosphor copper 90-92% |
| Screw terminal | Steel |

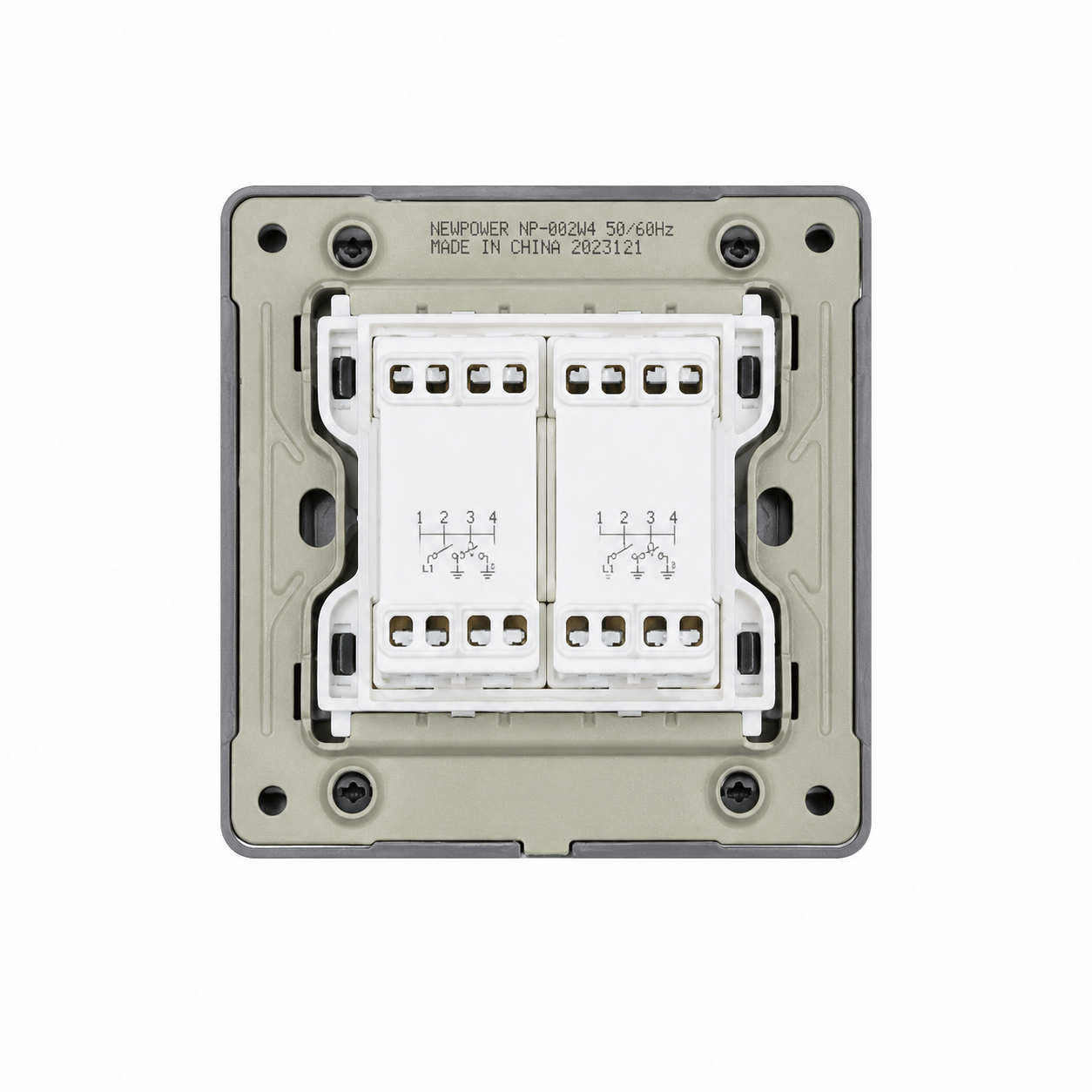

| Terminal Identifier | COM , L1 and L2 x2 Group |
| Conductor size | 4mm² |
| Terminal Capacity | 4 x 2.5 mm² 3 x 4 mm² |
| Tightening torque | 1.2 Nm |
| Screw size | M4 |
