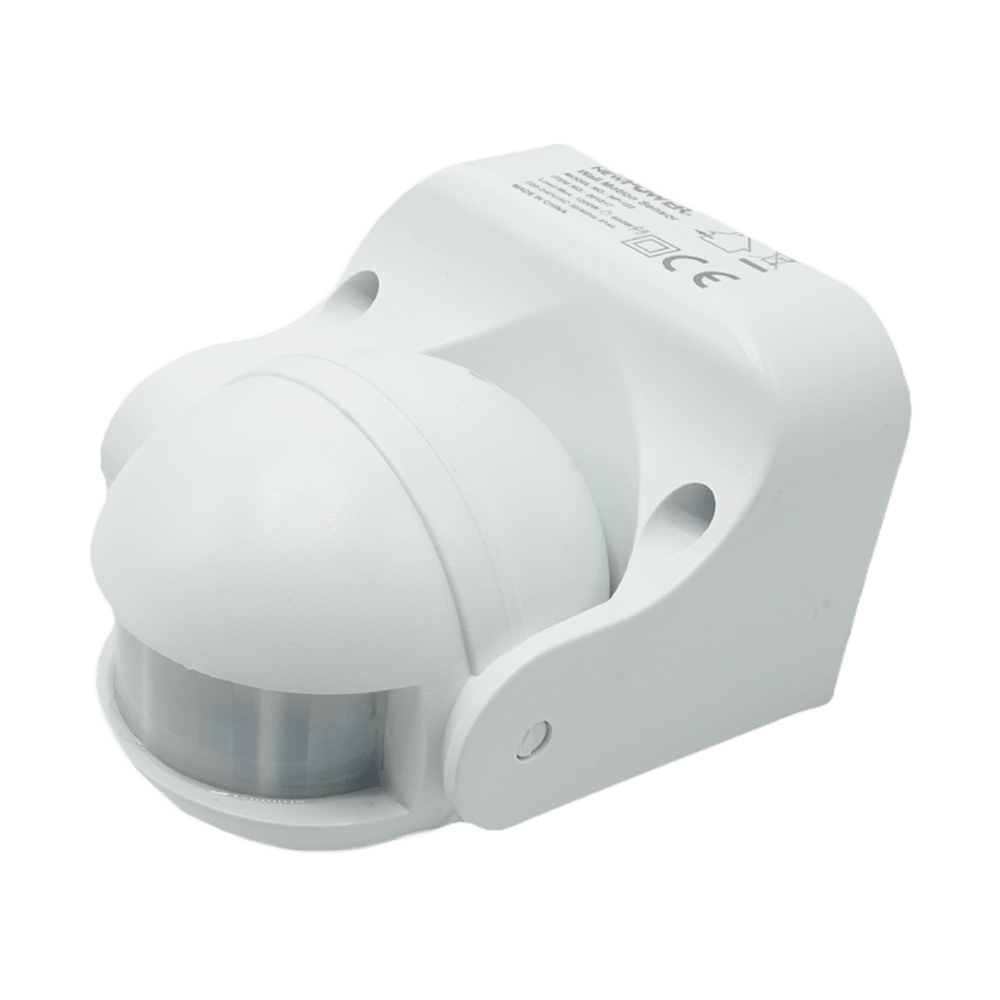

PRESENCE SENSORS (MIR) 1200W – NEWPOWER
NewPower Lighting Highlights:
- High Quality
- Long Lifespan
- Elegant Design
- Energy Efficient
| Item No: 201217 | Download Datasheet |
| Caption | Value |
|---|---|
| Installation Height Recommendation | 1.8-2.5 meters |
| Rated voltage | 220-240V~, +10 % / -10 % |
| Rated frequency | 50/60 Hz |
| Suitable for | 230 V incandescent lamps, Energy-saving bulbs, Fluorescent lamps |
| Rated power | 0.5W |
| Time Delay | Min. 10sec ± 3sec |
| Rated Load | Max. 1200W – 600W (220-240V/AC) |
| Protection class (Device) | IP 44 |
| Temperature range (Device) | -20 °C – +40 °C |
| Detection angle | 180 ° |
| Dimensions (L x W x D) | 86 mm x 60 mm x 95 mm |
| Mounting depth | 60 mm |
| Mounting height | 1.8-2.5 m |
| Detection Distance | 12m max (<24°C) |
| Detection Moving Speed | 0.6-1.5m |
