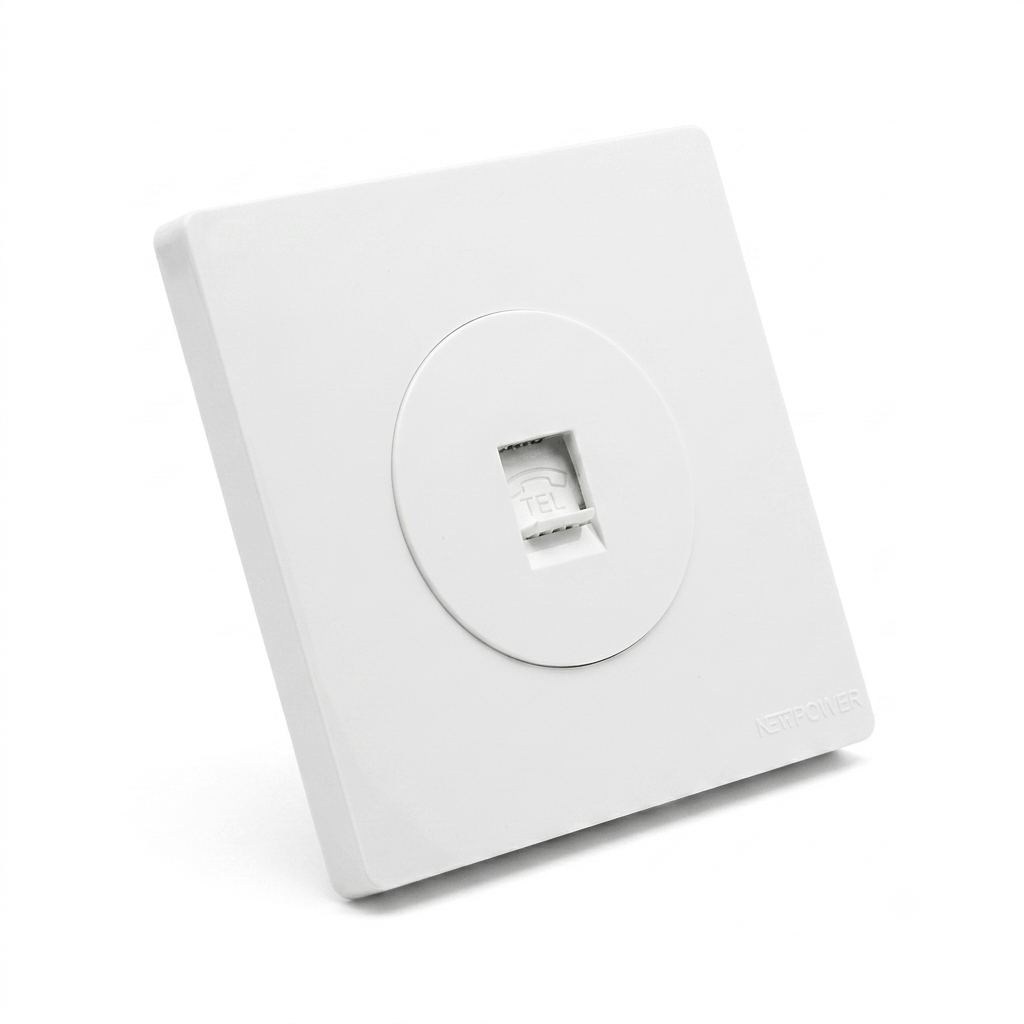

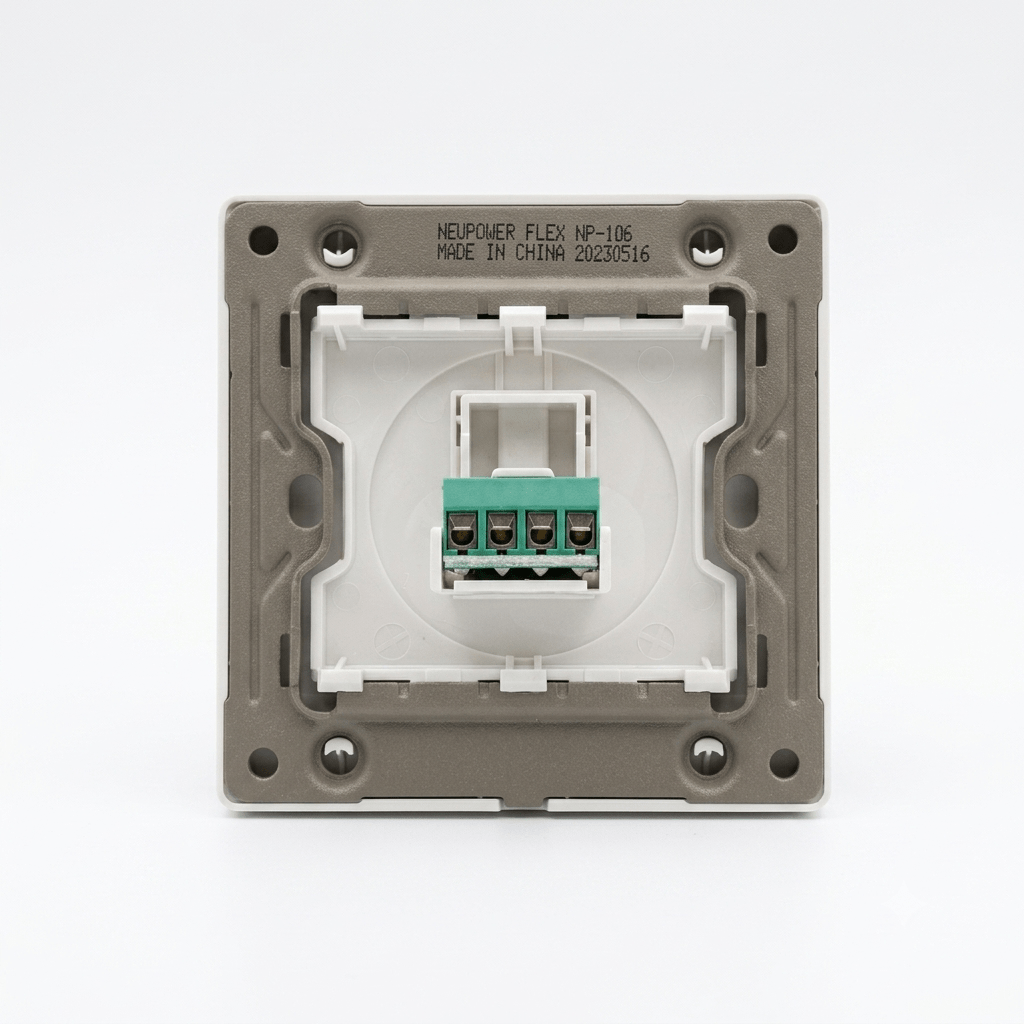

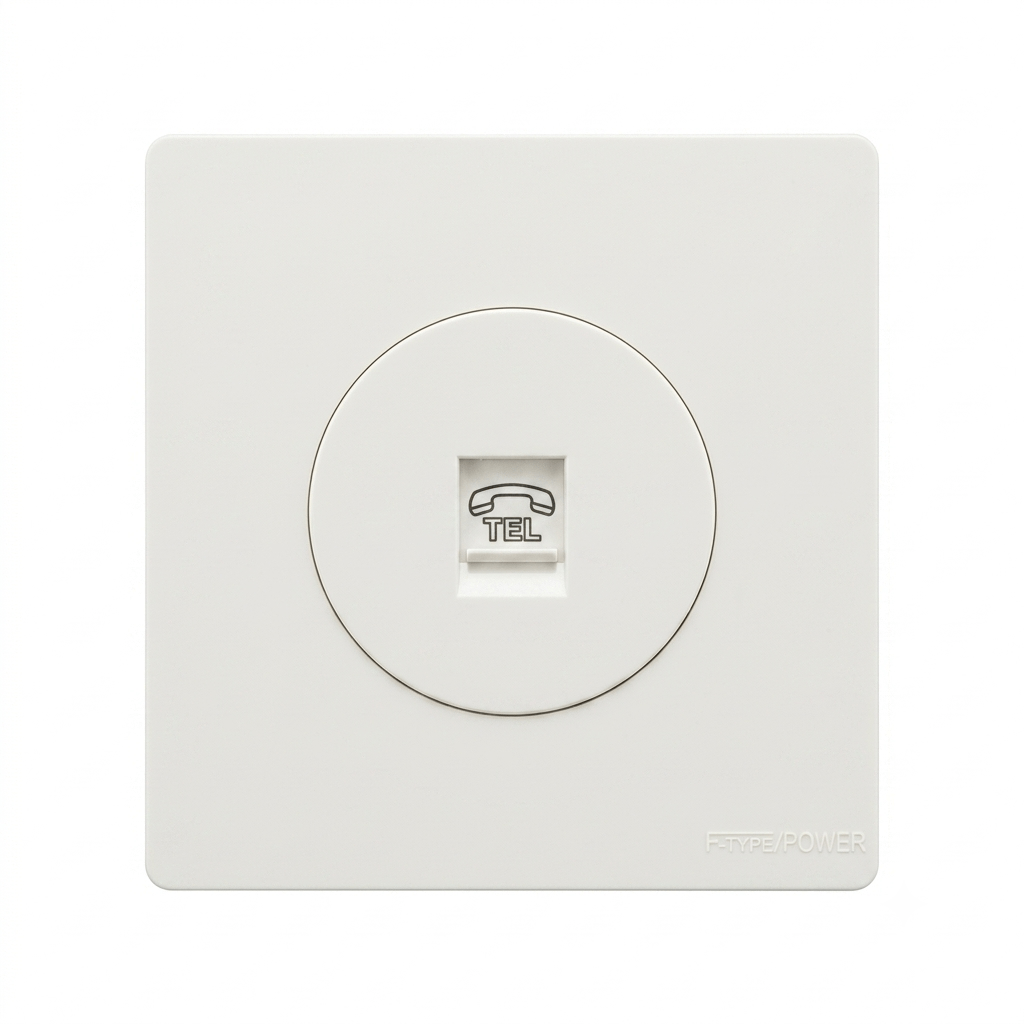

Telephone Socket Single Model 2 7×7 White – NEWPOWER FLEX
NewPower Lighting Highlights:
- High Quality
- Long Lifespan
- Elegant Design
- Energy Efficient
| Item No: 206079 | Download Datasheet |
| DESCRIPTION | DETAILS |
|---|---|
| Product Description | NEWPOWER SIZE 7X7 TELEPHONE SOCKET 1GANG RJ11 4P |
| Item Code | 206079 |
| Standard | IEC 60670-1:2015 |
| Rated Current | 100mA MAX |
| Rated Voltage | 90V AC/DC |
| Frequency | 0-25 Hz |
| Product Dimensions | 86 x 87 x 31 mm |
| Accessories | Mounting screws – 2 x M3.5 |
| Mounting | Flush Mounting |
| Fixing Center | 80 mm |
| Auxiliary fixing options | 4 Corners |
| Mounting box size | 35 mm |
| Actuating member | Rocker |
| Dielectric Strength | 600V DC / 400V AC |
| Insulation resistance | 500MΩ |
| Contact resistance | 20mΩ |
| Endurance | 750 Operations ( plug insertion & with drawl ) |
| Contacts | phosphor bronze with Nickel planting |
| Conductor size | AWG 22 to 26 |
