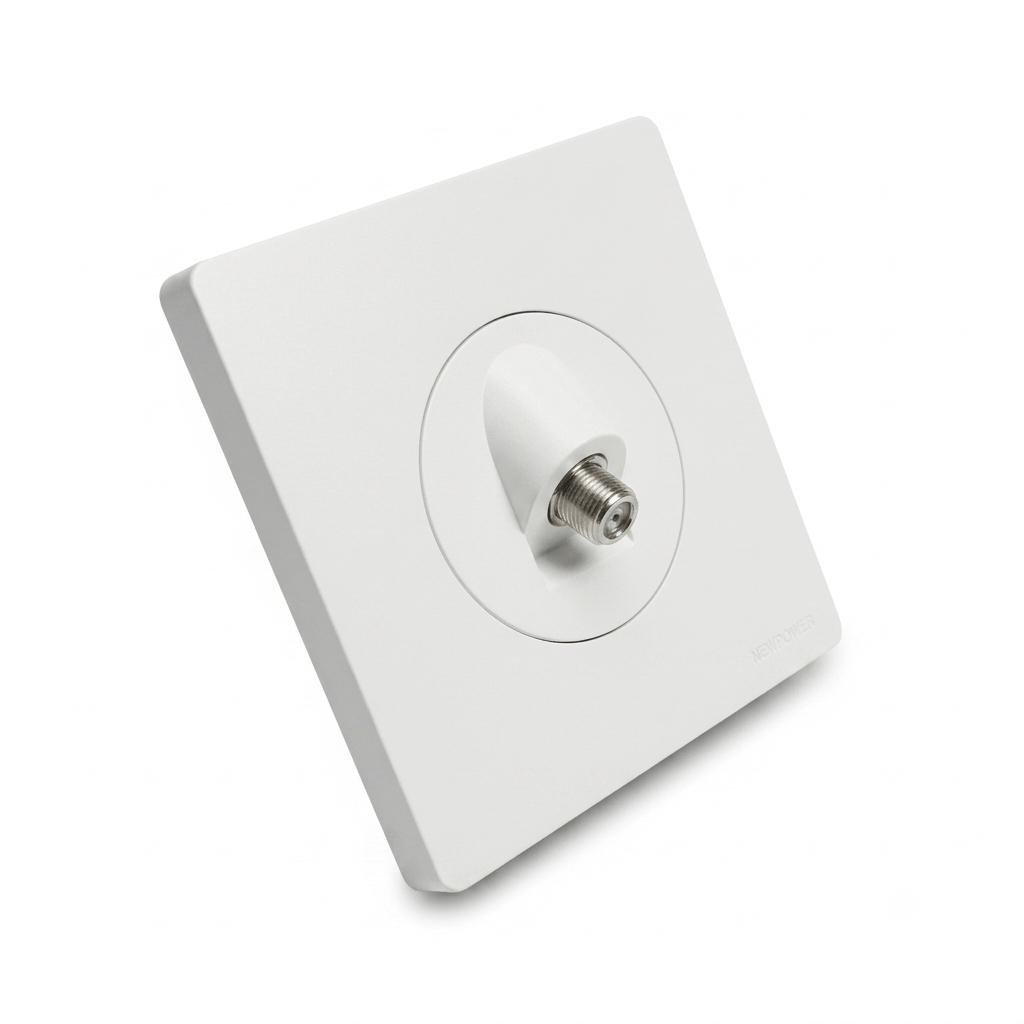

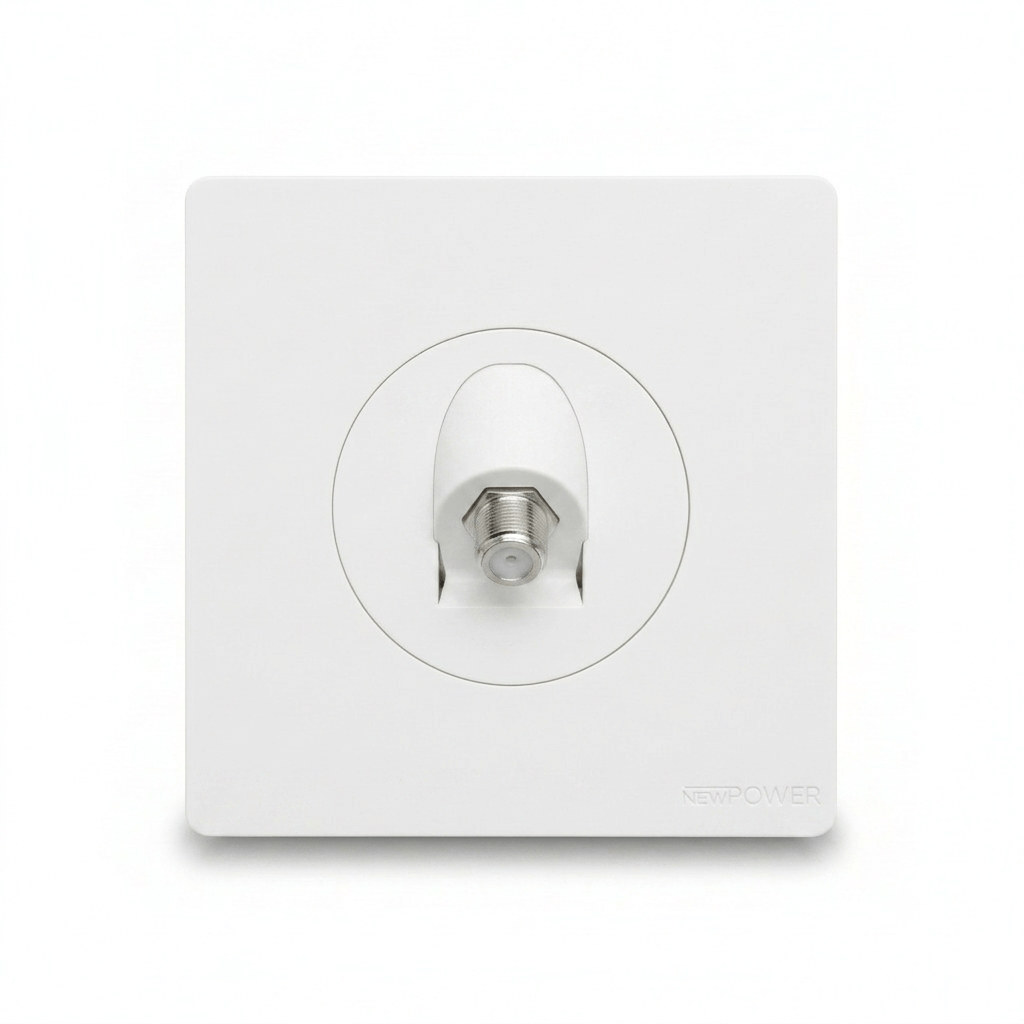

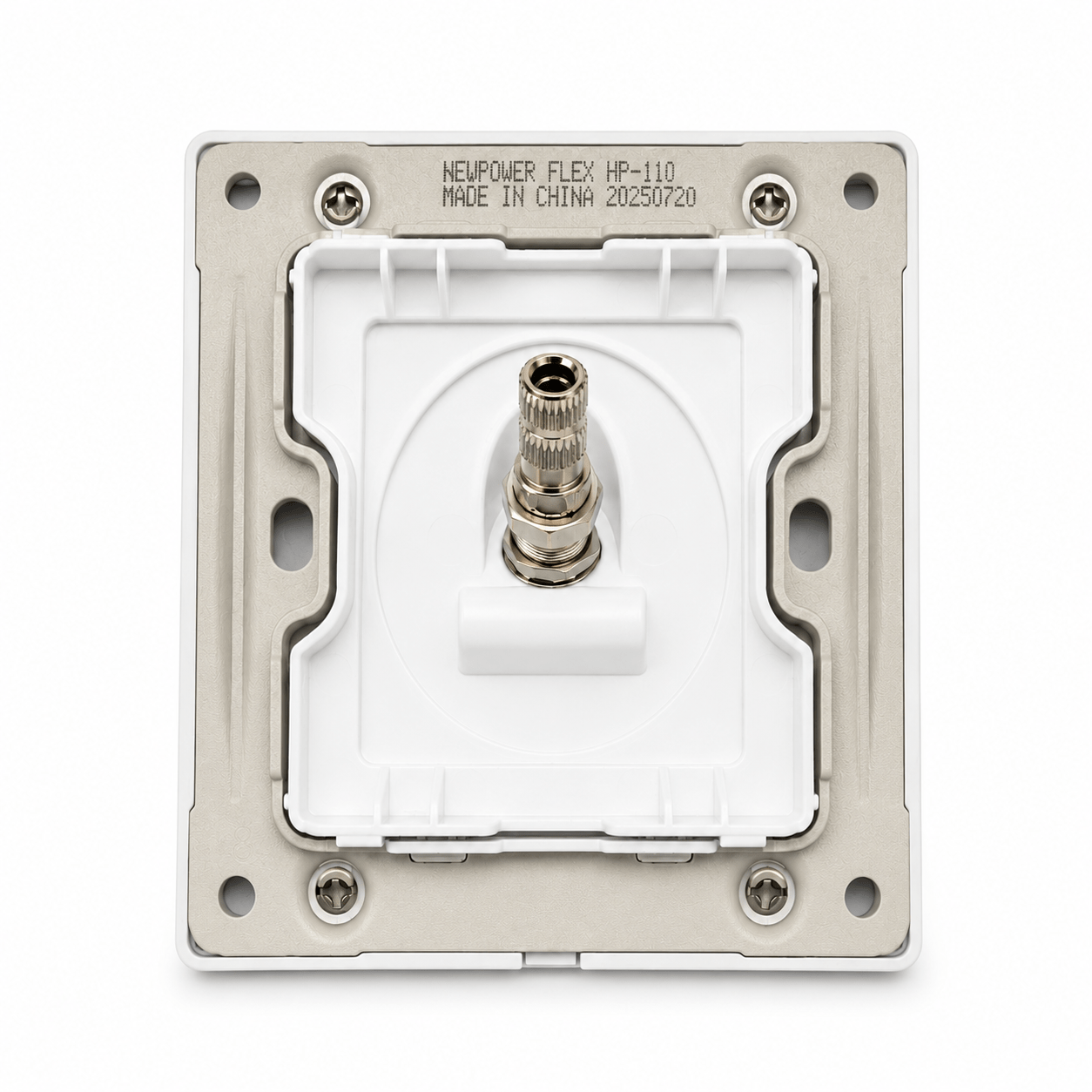

TV Socket Single 7×7 White – NEWPOWER FLEX
NewPower Lighting Highlights:
- High Quality
- Long Lifespan
- Elegant Design
- Energy Efficient
| Item No: 206081 | Download Datasheet |
| DESCRIPTION | DETAILS |
|---|---|
| Product Description | NEWPOWER SIZE 7X7 SATELLITE SOCKET 1GANG 75 OHM |
| Item Code | 206081 |
| Standard | IEC 60670-1:2015 |
| Product Dimensions | 86 x 87 x 31 mm |
| Accessories | Mounting screws – 2 x M3.5 |
| Mounting | Flush Mounting |
| Fixing Center | 80 mm |
| Auxiliary fixing options | 4 Corners |
| Mounting box size | 35 mm |
| Electrical | Connector Impedance :75Ω Frequency range 0 to 1 GHz |
| Connector | Material : Brass with Nickel coated Durability: 500 cycles min. |
| Center contact | Phosphor bronze – gold plated |
| Insulator | POM |
| Co axial cable ( inner core dia ) | 1 mm |
| Tightening torque | 1.2 Nm |
